1.Description: GE Healthcare > Marquette Compatible 3 Lead Snap Direct-Connect ECG Cable - 2001292-001
2.OEM Part No
3.Compatibility:
| Manufacturer | Model |
| Datex Ohmeda | Aestiva/5, E-PRESTN, F-FM-00, M-PRESTN, Unity |
| Draeger | Narkomed 6400 |
| GE Healthcare > Critikon > Dinamap | Carescape B450, Carescape B650, Carescape B850, Procare B40 |
| GE Healthcare > Marquette | Dash 1000, Dash 2000, Dash 2500, Dash 3000, Dash 4000, Dash 5000, Dash PRO 2000, Dash PRO 3000, Dash PRO 4000, Eagle, Eagle Systems, MAC-Lab, PDM Module, Responder 2000, Responder 3000, Solar 3000, Solar 8000, Solar 9500, Tram 100, Tram 200, Tram 300, Tram 400, Tram 451, Tram 500, Tram 600, Tram 800, Unity Systems |
| GE Healthcare | Aisys CS2, Logiq 5, Logiq 7, Vivid 3, Vivid 7, Vivid e9, Vivid i |
4.Specification
| Connector | 11Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
Technical Specifications:
| Category | ECG |
| Instrument connector | 11pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude
Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 11Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
|
|

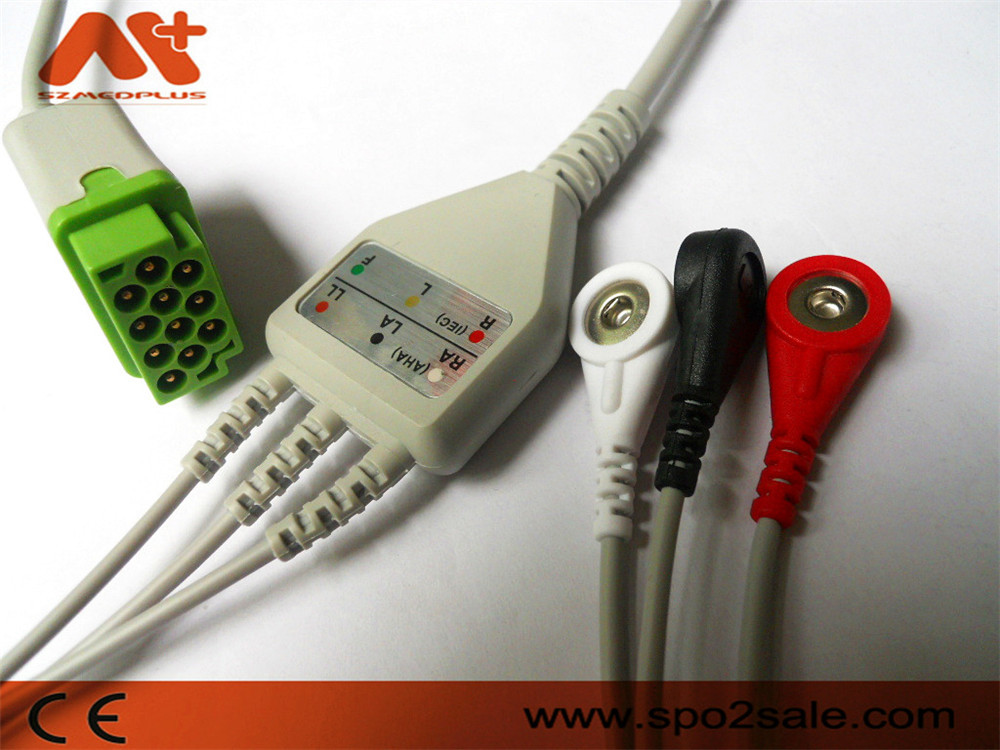

GE Healthcare > Marquette Compatible 3 Lead Snap Direct-Connect ECG Cable - 2001292-001 Images
|
