1.Description: Covidien > Nellcor Compatible Temperature Adapter - 18-02-0235
Temperature test range: 25 ℃ ~ 45 ℃;
Temperature test precision: ± 0.1 ℃;
Product structure: consists of plug, cable, sensor;
Application Scope: multi-parameter monitor;
Usage: measure body temperature for critical patients
Contraindications: this product may not be fixed in the position of the tissue damage
2.OEM Part Number Cross References
3.Compatibility
| Manufacturer | Model |
| CAS Med | 750 |
| Carewell | CPM-9000T |
| Criticare | 1100, 2200, 506, 507, 507E, 507ELC, 507S, 508, 8100 |
| Datex Ohmeda | CS/3, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-ESTP, S/3, S/5, Satliteplus |
| Draeger | Infinity Delta, Infinity Gamma, Infinity Kappa, Infinity Vista, Narkomed 6400 |
| Edan | M50, M80 |
| Invivo | MDE Prism |
| MEK | MP 100, MP 1000, MP 110, MP 400, MP 500, MP 600, MP 700, MP 7000 |
| Midmark > Cardell | 9403, 9404, 9405 |
| Mindray > Datascope | PM 7000, PM 8000, PM 9000, PM 9000 Express, Passport 2, Passport XG, Spectrum, Spectrum OR, Trio, VS 800 |
| Nihon Kohden | BSM-2300 Life Scope I, BSM-4100 Life Scope P, BSM-5100 Life Scope A, BSM-6701A, BSM-9510 Life Scope M, BSM-9800 Life Scope S |
| Philips | Tempus Pro |
| Smiths Medical > BCI | SurgiVet |
| Spacelabs | 93300 eLance Series |
| Stryker > Gaymar | Medi-Therm III |
| Welch Allyn | Atlas, Propaq CS |
| YSI | 400 Series |
| Zoll | X Series |
4.Specification
| Connector | Mono Plug Connector 90 degree |
| Cable material | medical PVC |
| Cable diameter | 3.0 mm |
| Patient end | Female mono plug connector |
| Latex Free | Yes |
| Resistor | NTC |
| Cable length | 2M |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
Patient type: Female Mono plug Connector,
Machine side connector: Mono Plug connector 90 degree;
Patient side: OD3.0 dial package probe;
Resistance:25℃＝2.252KΩ;
characteristic of Product: Compatible with mono plug temp probe;
Monitoring site:Surface,axillary
Material of temperature sensor: PVC;
Advantage of temperature sensor: High-performance dual-shielding effection, special alloy wire conductor to increase 3 ~ 5 times life;
characteristic of pins: Gold-plated make anti-interference effective which be sure high-quality singnal transmittance;
Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

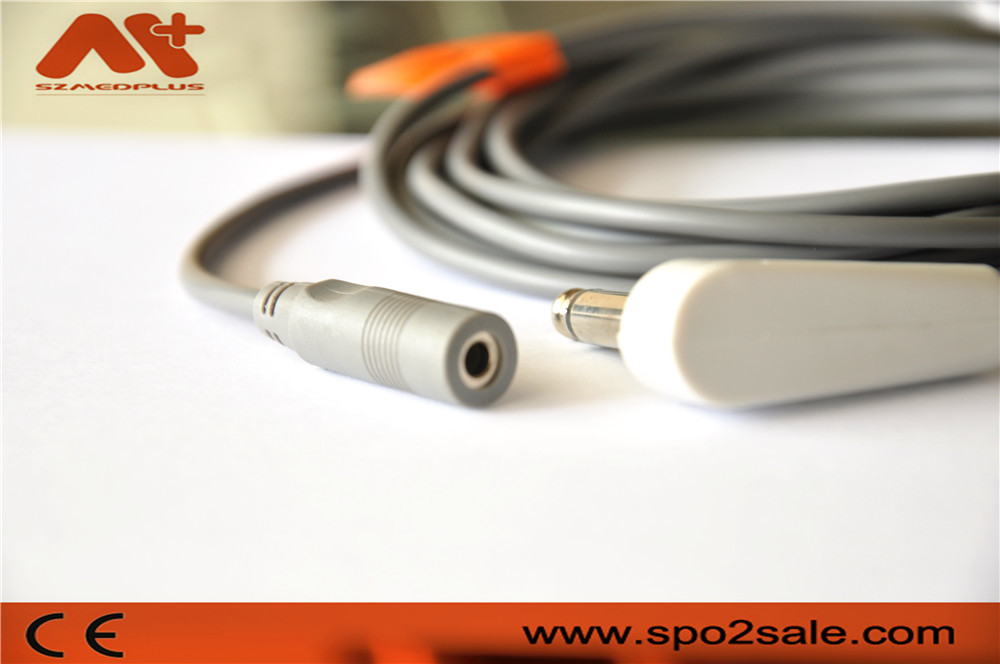

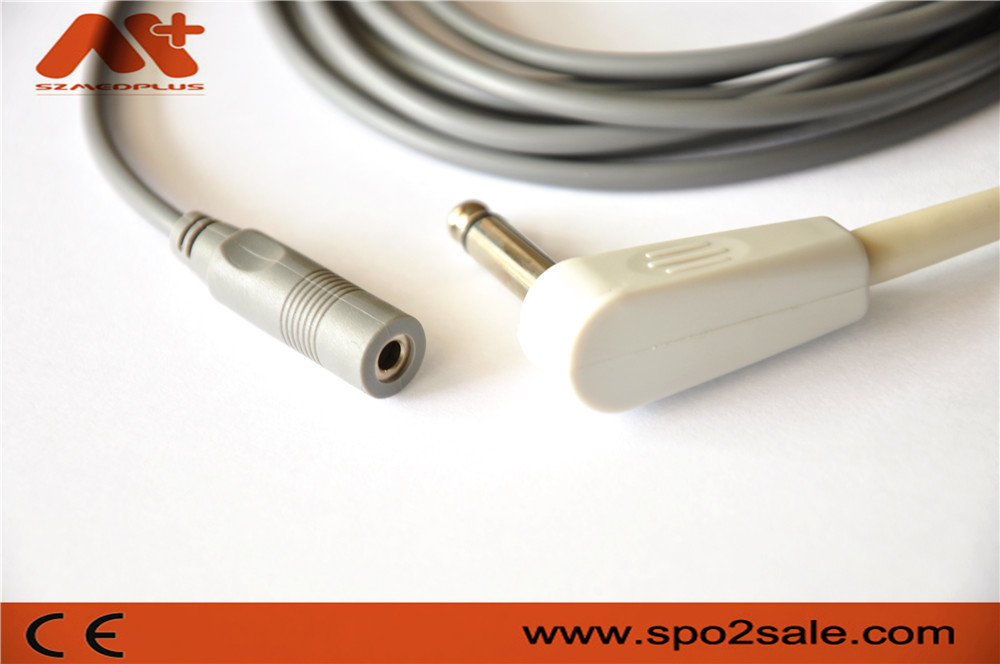

6.Image
